12V10A 24V5A Automatic Intelligent Repair Battery Charger with ABS Material and 15W/10W/7.5W/5W Automatic Identification

Product Categories

UWONG ELECTRONIC TECHNOLOGY CO.,LTD

Contact Now

12V10A 24V5A Automatic Intelligent Repair Battery Charger with ABS Material and 15W/10W/7.5W/5W Automatic Identification

type : Electric, Power Supply Adapter, CAR CHARGER, Fast Charger

usage : Universal , Electric Tool, home security system, Motorcycle / Scooter, Smart Watch

material : PC Fireproof Material, ABS

protection : Short Circuit Protection, ovp, OTP, OLP, ocp, Low Tension, Over-charging, Overcurrent, Overvoltage

private mold : Yes

function : FCP, SCP

brand name : UW-WONG

model number : 12V24V10A

port : DC, AC

input : 12v/10a, 12-24V/5A, 12V/20A

output power : 125W

place of origin : China

Product name : Intellegent Lead-acid Battery Charger

Connector : Current Protection

Output : 12V/24V

Application : Electric Vehicle E-bike Scooter

Package : Customized Package

Power : 15W/10W/7.5W/5W Automatic Identification

Feature : Fast Charging Speed

OEM/ODM : Accept OEM Orders

Warranty : 12 Months

Charging efficiency : 90%

MOQ : 100 pieces

Price : CN¥47.24/pieces 100-1999 pieces

Contact Now

Full Automatic 12V 12A 24V 6A Car Battery Charger 220V Smart Charging for Lead-Acid Battery

Specification

Name	Intelligent 12V 24v 12A lead acid battery charger
Mode	12V24V1 2A
Input	110Vac or 220Vac
Output	14.7V Float charge voltage:13.8V (for 12V lead acid battery)
Output current	12A
Features:	Temperature control compensation charger
Compatibility	35AH,60AH 80AH 100AH 120AH 150AH 180AH 200AH lead acid battery
Protection	-Short circuit protection -Overvoltage protection -Overcurrent protection -Overheating protection -Reverse connection protection
Apply to	Children's toy cars, motorcycles, cars, etc.
Efficiency	85%
Material	ABS

Product Description

12V10A 24V5A Automatic Intelligent Repair Battery Charger with ABS Material and 15W/10W/7.5W/5W Automatic Identification

(1) output short circuit, anti-reverse connection: the product has an output short
circuit, reverse battery prompt (reverse connection 1-2S detection, detection of reverse connection reverse

connection or short circuit when the LCD display "ERO", the detection process will not cause damage to the product because of reverse connection or short circuit), and reverse connection, after the microprocessor program processing, there will be no reverse connection sparking henomenon occurs.

(2) battery power detection: no access to AC input voltage, battery clamps clamped on the positive and negative

ends of the battery (red positive and black negative), you can display the battery current and voltage parameters in time (digital tube display data: voltage and ambient temperature cycle display, power grid according to the detected data

in the form of a percentage display, the first power 6S self-test waiting, 6S not to show the temperature, 6S to reach the temperature and voltage cycle display)

(3) winter and summer mode: during the charging process, detect the ambient temperature, timely adjustment of the product charging
state to ensure battery life and charging safety, winter mode: LCD display snowflakes, summer mode: LCD display sun

(4) over-temperature protection: the product has over-temperature protection function, the product detects the temperature is too high, will start the over-temperature protection program, when the temperature returns to normal values, restore the initial charging state

(5) Overcharge protection: the product has an overcharge protection function to avoid overcharging resulting in a decline in battery life and to enhance the reliability of charging safety (maximum charging time default 15.5-16.0H)

(6) Charging voltage self-test: automatic self-test after the battery is charged, without artificial switching, the self-test
passes into the floating charge, and vice versa into the compensation charge, the compensation charge is completed into the floating charge

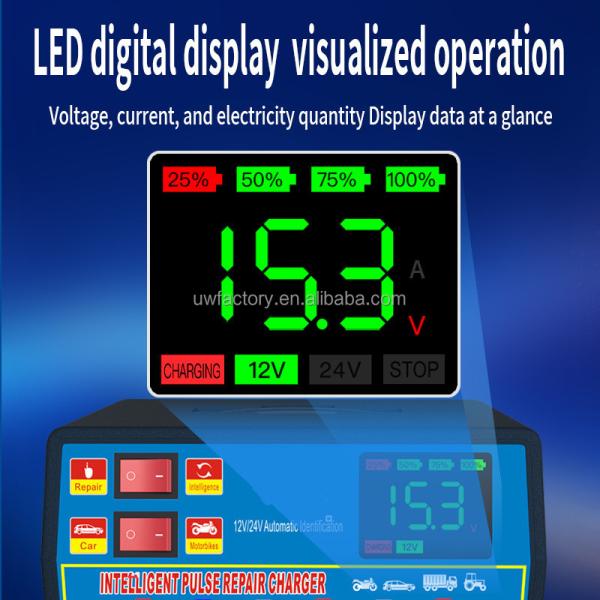

(7) LCD display status.
a: full state: LCD display "FUL", power grid "100%"
e: charging status: LCD cycle display voltage, current, temperature, power grid "charging special effects display"
f: repair mode: LCD display "PUL", power grid "repair effect display", repair icon flashing
g: no-load battery detection: LCD cycle display voltage, temperature, power grid according to the battery power in the form of percentage display.
